寸法
|
重量
（約）
|
|
片開き
|

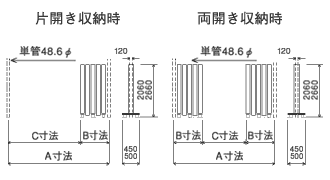

A寸法
|
B寸法
|
C寸法
|
|
S18
|
2,000
|
370
|
1,630
|
30
|
|
S27
|
2,900
|
460
|
2,440
|
45
|
|
S36
|
3,800
|
550
|
3,250
|
55
|
|
S45
|
4,700
|
640
|
4,060
|
65
|
|
S54
|
5,600
|
730
|
4,870
|
90
|
|
S63
|
6,500
|
820
|
5,680
|
100
|
|
S72
|
7,400
|
910
|
6,490
|
110
|
|
S81
|
8,300
|
1,000
|
7,300
|
120
|
|
S90
|
9,200
|
1,090
|
8,110
|
130
|
|
両開き
|
|
|
|
|
|
W36
|
3,900
|
370
|
370
|
3,160
|
60
|
|
W45
|
4,800
|
370
|
460
|
3,970
|
75
|
|
W54
|
5,700
|
460
|
460
|
4,780
|
90
|
|
W63
|
6,600
|
460
|
550
|
5,590
|
100
|
|
W72
|
7,500
|
550
|
550
|
6,400
|
110
|
|
W81
|
8,400
|
550
|
640
|
7,210
|
120
|
|
W90
|
9,300
|
640
|
640
|
8,020
|
130
|
|
W99
|
10,200
|
640
|
730
|
8,830
|
155
|
|
W108
|
11,100
|
730
|
730
|
9,640
|
180
|
|
W117
|
12,000
|
730
|
820
|
10,450
|
190
|
|
W126
|
12,900
|
820
|
820
|
11,260
|
200
|
|
W135
|
13,800
|
820
|
910
|
12,070
|
210
|
|
W144
|
14,700
|
910
|
910
|
12,880
|
220
|
|
W153
|
15,600
|
910
|
1,000
|
13,690
|
230
|
|
W162
|
16,500
|
1,000
|
1,000
|
14,500
|
240
|
|
W171
|
17,400
|
1,000
|
1,090
|
15,310
|
250
|
|
W180
|
18,300
|
1,000
|
1,090
|
16,120
|
260
|
|
 ※上記表は標準の寸法、重量表です。詳しくはお問い合わせ下さい。
|

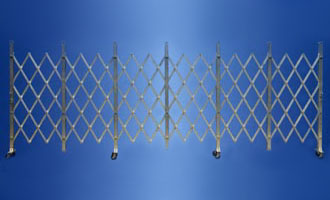

type C h=2m(ジャバラ高1.8m) パネル取付可 ［54型］
|
|
